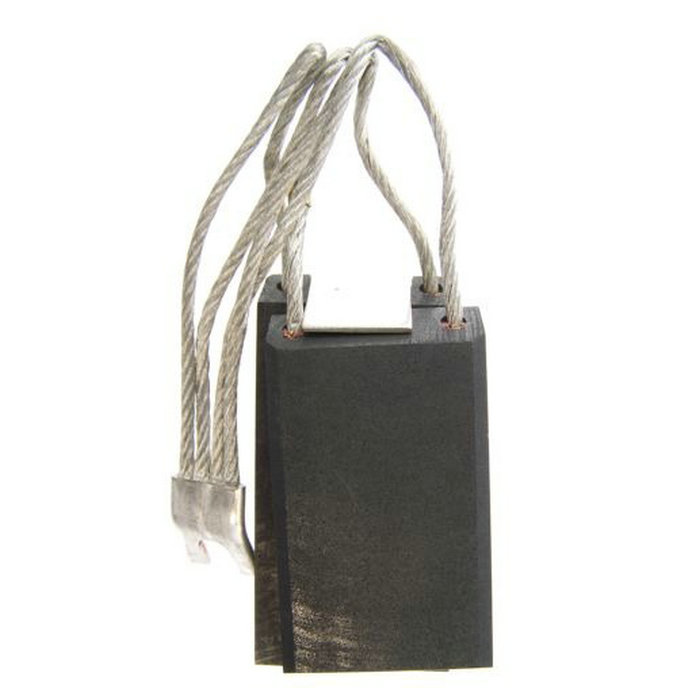

GE 36A16453AAP01, 36A16453AAP05, 36A16453AAP20 Carbon Brushes – Industrial OEM Replacements by VOCARBON

Overview

The GE 36A16453AAP01, 36A16453AAP05, and 36A16453AAP20 carbon brushes are heavy‑duty industrial electrical contact components originally specified for General Electric motors and generators. These brushes are designed to provide stable current transfer, reliable commutation, and extended service life, making them ideal for demanding applications in industrial environments such as power generation, steel mills, mining equipment, and heavy machinery drives.

VOCARBON supplies high‑quality replacements for all three GE models with optimized materials and precision manufacturing. VOCARBON brushes ensure consistent electrical performance, reduced wear, and dependable operation in continuous and heavy‑load conditions.

Material & Grade

All three GE models — 36A16453AAP01, 36A16453AAP05, and 36A16453AAP20 — are typically manufactured from:

• Material Type: Electro‑graphite / Graphite blend

• Industrial Grade: Heavy‑duty grade suitable for high current density and frequent commutation

Material advantages include:

• High electrical conductivity

• Stable self‑lubrication

• Excellent film‑forming ability on commutators

• Controlled wear and low friction

• High mechanical strength for prolonged life

Electro‑graphite grades are commonly used in industrial motors and generators where robust commutation and low maintenance are required.

Typical Dimensions & Variants

While each version (AAP01, AAP05, AAP20) has minor differences in shunt, terminal or grade specification, typical size and configuration features include:

• Length: ~2.75–3.50 inches (≈ 70–90 mm)

• Width: ~0.75–1.00 inches (≈ 19–25 mm)

• Thickness: ~1.25–1.50 inches (≈ 32–38 mm)

• Shunt: Flexible copper braided shunt

• Terminal: GE‑style terminal connector (clip or flag type)

• Contact Surface: Radius or flat based on commutator design

VOCARBON offers full customization of size, shunt length, and terminal configuration to suit exact GE OEM specifications or unique application needs.

Technical Specifications (VOCARBON Optimized)

These parameters reflect industrial carbon brush performance standards used in medium to high current motors and generator systems.

Key Performance Features

1. Reliable Electrical Conductivity

Ensures efficient and consistent current transfer with minimal energy loss.

2. Durable Wear Resistance

Optimized electro‑graphite structure delivers long service life and reduced commutator wear.

3. Smooth Commutation

Improved material properties reduce sparking and electrical noise.

4. High Thermal Stability

Maintains performance under elevated temperature and load fluctuations.

5. OEM Compatibility

VOCARBON brushes are engineered as direct drop‑in replacements for GE 36A16453AAP01, AAP05, and AAP20, with precise fit and functionality.

Applications

VOCARBON GE 36A16453AAPxx carbon brushes are suitable for:

• Industrial DC and universal motors

• Generators and power plant auxiliary equipment

• Heavy duty machinery drives

• Rolling mills, cranes, and hoists

• Mining, cement, and steel plant motors

VOCARBON Advantages

• OEM‑equivalent or superior quality

• Batch consistency with strict QC

• Custom engineering support (dimensions, shunt, terminals)

• Competitive pricing for aftermarket solutions

Conclusion

The VOCARBON GE 36A16453AAP01, 36A16453AAP05, and 36A16453AAP20 carbon brushes are robust, high‑performance electro‑graphite solutions designed for industrial applications requiring durability, stability, and efficiency. With verified performance parameters, optimized materials, and direct OEM compatibility, these brushes deliver efficient current transfer, longer brush life, and reduced maintenance needs, making them ideal replacements for GE equipment and heavy‑duty motor systems worldwide.
