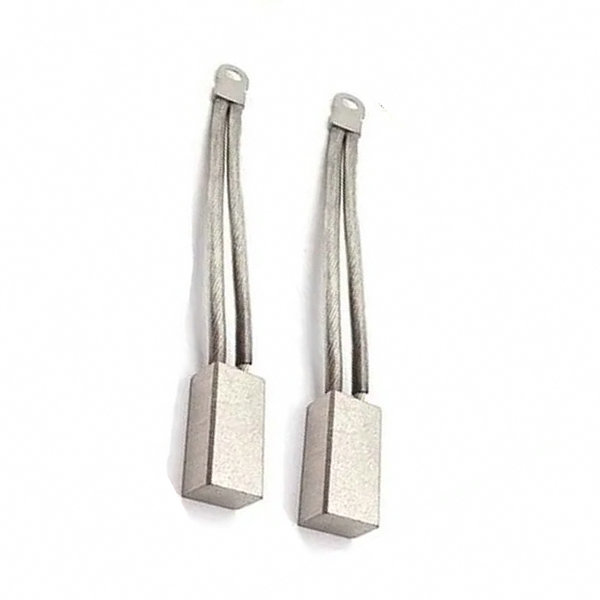

Silver Graphite Brushes

Technical Overview of Silver Graphite Brushes – Powered by Vocarbon

Silver graphite brushes are a specialized category of electrical contact materials designed for applications requiring superior conductivity, stability, and durability. At Vocarbon, we focus on engineering advanced brush solutions that meet the stringent demands of power generation, aerospace, transportation, and high-frequency electrical systems. By combining silver with graphite, these brushes deliver a balanced performance profile where low electrical resistance and mechanical resilience are equally important.

Material Composition and Structure

Silver graphite brushes typically consist of a controlled mixture of high-purity silver and fine graphite particles. The silver content usually ranges between 30% and 80%, depending on the specific application requirements. Higher silver concentrations result in lower contact resistance and improved electrical conductivity, while graphite provides lubrication and wear resistance. The microstructure of the material is carefully engineered to ensure uniform current distribution and minimized sparking, even under fluctuating load conditions.

Electrical Performance

The key advantage of silver graphite brushes is their exceptionally low contact drop. With resistivity values often in the range of 2–5 μΩ·cm, these brushes are highly effective for applications involving high current densities and sensitive voltage regulation. Their ability to handle current densities up to 25–40 A/cm² makes them suitable for modern high-performance systems. Furthermore, their low noise characteristics help reduce electromagnetic interference, which is vital in aerospace and precision instrumentation.

Mechanical Characteristics

Despite their high silver content, Vocarbon silver graphite brushes maintain excellent wear properties thanks to the lubricating qualities of graphite. Typical hardness values range from 20–40 HRB, ensuring a balanced resistance to mechanical stress without compromising electrical contact. Brush life is further enhanced by optimized spring pressure and surface finishing, which reduce arcing and surface pitting.

Operating Environment

Silver graphite brushes are designed for demanding environments. They can operate reliably within a temperature range of -50°C to +200°C, making them suitable for applications such as wind turbines, high-speed generators, and aviation alternators. The self-lubricating graphite reduces the risk of overheating and ensures stable performance under variable loads and high rotational speeds.

Typical Applications

• Aerospace Generators: Stable current transfer under vibration and thermal stress.

• Wind Power Systems: Extended brush life in fluctuating load cycles.

• Railway Traction Motors: Reliable performance with high current demands.

• UPS and Power Conversion Units: Low resistance and reduced sparking for clean power delivery.

Vocarbon’s Advantage

At Vocarbon, we go beyond standard brush manufacturing. Our engineering team works closely with clients to tailor material composition, brush geometry, and surface treatment to specific application requirements. By leveraging advanced powder metallurgy and precision machining, we ensure consistent quality and long service life. Whether your application demands maximum conductivity, reduced EMI, or robust mechanical endurance, Vocarbon silver graphite brushes provide a proven solution trusted by industries worldwide.
