Carbon brush material, also called electric brush material, can be used for generators or electric motors; electrical machinery and carbon brushes. Carbon brush material is a kind of graphite materials we produce.
There are mainly 5types of carbon brush materials, Main types:
1). Metal graphite material.
2). Silver graphite material
3). Pure graphite
4). Resin graphite material
5). Electric graphite material
See the full data sheet of all the grades carbon brushes/electric bruses material bellow:
| Data sheet for carbon brush material –generators or electric motors; electrical machinery; | ||||||||||
| Types | Items | resistivity (μΩ·m) | Short-circuit commutator test | Operating conditions | Main application | |||||
| Voltage drop for a pair brushes (V) | Coef of Friction (≤) | Wear volume for 50hrs (mm) | rating Current density (A/cm2) | Allowable rim speed(m/s) | Pressure issue (kpa) | |||||
| Metal graphite | J102 | 0.115～0.345 | 47～99(392) | 0.30～0.70 | 0.2 | 0.4 | 20 | 20 | 17.6～22.5 | d.c. generators with low voltage and slip rings of a.c. asynchronous motors |
| J105 | 0.03～0.09 | 59～105(392) | ≤0.40 | 0.25 | 0.8 | 20 | 20 | 17.6～22.5 | contacts | |
| C42 | 0.05～0.12 | 30～90(392) | 0.18～0.39 | 0.2 | 0.6 | 20 | 20 | 17.6～22.5 | ||
| C412 | 0.16～0.26 | 50～100(392) | 0.30～0.70 | 0.2 | 0.4 | 20 | 20 | 17.6～22.5 | Slips of current-collectors | |
| J108 | 0.1～0.3 | 47～104(392) | 0.28～0.66 | 0.2 | 0.4 | 20 | 20 | 17.6～22.5 | d.c. generators with low voltage and slip rings of a.c. asynchronous motors | |
| J164 | 0.045～0.135 | 30～92(392) | 0.18～0.42 | 0.2 | 0.7 | 20 | 20 | 17.6～22.5 | d.c. generators with low voltage and slip rings of a.c. commutator machines | |
| J201 | 1.4～5.6 | 64～103(588) | 0.83～2.18 | 0.25 | 0.18 | 15 | 25 | 14.7～19.6 | d.c. generators up to 60V and d.c. welding machines, etc. | |
| H5 | 1.0～4.5 | 65～95(588) | 0.72～1.68 | 0.22 | 0.16 | 15 | 25 | 19.6～24.5 | Slip rings of synchonorous generators, wind driven generators | |
| H71 | 0.25～0.75 | 70～105(588) | 0.50～1.31 | 0.2 | 0.25 | 15 | 25 | 19.6～24.5 | ||
| J203 | 4.4～13.2 | 30～90(588) | 1.17～2.43 | 0.25 | 0.15 | 12 | 20 | 14.7～19.6 | d.c. generators upto 60V | |
| J204 | 0.24～0.96 | 73～105(588) | 0.61～1.60 | 0.2 | 0.3 | 15 | 20 | 19.6～24.5 | d.c.generators up to 80V; small traction morors and slip rings of asynchronous motors. | |
| J245 | 0.23～0.68 | 67～104(588) | 0.36～0.95 | 0.2 | 0.3 | 15 | 25 | 19.6～24.5 | d.c.generators up to 40V; automobiles starters and exciting slip rings of synchronous machines | |
| J205 | 2.4～9.6 | 43～104(588) | ≤2.00 | 0.25 | 0.5 | 15 | 35 | 14.7～19.6 | Density: 3.75-4.56 | |
| J206 | 2.0～6.0 | 65～104(588) | 0.97～2.03 | 0.2 | 0.3 | 15 | 25 | 14.7～19.6 | 19.6～24.5 | |
| J210 | 0.22～0.88 | 40～96(588) | 0.61～1.60 | 0.25 | 0.3 | 15 | 25 | 14.7～19.6 | d.c.generators upto 60V; automobile starting motors and slip rings of asynchronous motors. | |
| J213 | 0.22～0.88 | 67～104(588) | 0.39～1.02 | 0.2 | 0.4 | 15 | 20 | 19.6～24.5 | ||
| J215 | 2.0～6.0 | 65～105(588) | 0.96～2.24 | 0.25 | 0.14 | 15 | 20 | 20～25 | ||
| J230 | 0.6～1.8 | 70～105(588) | 0.50～1.20 | 0.2 | 0.25 | 15 | 35 | 14.7～19.6 | Automobile starters and exciting slip rings of synchronous machines | |
| J240 | 1.0～4.0 | 66～113(588) | 0.78～1.82 | 0.25 | 0.2 | 15 | 35 | 19.6～24.5 | ||
| J241 | 1.17～4.03 | 60～100(588) | 0.70～1.70 | 0.25 | 0.3 | 15 | 35 | 14.7～19.6 | ||
| Silver graphite | J239 | 1.05～3.15 | 47～99(392) | 0.05～1.62 | 0.2 | 0.25 | 15 | 35 | 14.7～19.6 | |
| J412 | 0.35～1.05 | 30～93(392) | 0.42～1.24 | 0.2 | 0.3 | 15 | 25 | 19.6～24.5 | ||
| J453 | 0.72～2.88 | 64～103(588) | 0.60～1.42 | 0.2 | 0.3 | 15 | 35 | 19.6～24.5 | Generators for car window scraper, warm air motors, motorcycles. | |
| J390-1 | ≤0.15 | 48～112(588) | ≤0.30 | 0.25 | 0.5 | 20 | 15 | 14.7～19.6 | ||
| J390 | 0.03～0.1 | 30～90(588) | <0.20 | 0.25 | 9 | 20 | 15 | 14.7～19.6 | ||
| J385 | 0.04～0.13 | 47～102(392) | 0.05～0.30 | 0.25 | 6 | 20 | 15 | 14.7～19.6 | Slip contacts for conducting current and transmit signal | |
| J385-3 | 0.04～0.20 | 50～104(588) | ≤0.40 | 0.25 | 5 | 20 | 15 | 14.7～19.6 | Contacts for signal devices; a.c. miniature electrical machines. | |
| J380 | 0.08～0.24 | 47～95(392) | 0.12～0.50 | 0.25 | 4 | 20 | 15 | 14.7～19.6 | ||
| J375 | 0.1～0.4 | 50～104(588) | 0.14～1.00 | 0.28 | 3 | 15 | 20 | 14.7～19.6 | ||
| J370 | 0.12～0.70 | 30～100(588) | 0.25～1.20 | 0.28 | 2 | 15 | 20 | 14.7～19.6 | ||
| J360 | 0.3～1.2 | 50～104(588) | 0.40～1.50 | 0.28 | 1.8 | 15 | 20 | 14.7～19.6 | ||
| J350 | 0.8～4.0 | 30～104(588) | 0.60～1.80 | 0.3 | 0.8 | 15 | 20 | 14.7～19.6 | ||
| J325 | 5.0～12.0 | 30～100(588) | 0.80～2.00 | 0.25 | 0.4 | 15 | 20 | 14.7～19.6 | ||
| Pure graphite | S3 | 9～17 | 30～94(588) | 1.58～2.63 | 0.25 | 0.2 | 11 | 25 | 19.6～24.5 | |
| S6 | 14～26 | 47～95(196) | 1.35～2.25 | 0.33 | 0.2 | 12 | 70 | 14.7～19.6 | ||
| S6M | 13～23 | 82～112(196) | 1.19～2.21 | 0.33 | 0.15 | 10 | 70 | 14.7～19.6 | 80-120 V d.c machines | |
| S7 | 17～25 | 46～77(196) | ≤2.50(single） | 0.27 | 1.50(100h) | 10 | 70 | 14.7～19.6 | Steel Slip rings for high speed steam turbo-generators | |
| Resin graphite | S-28 | 98～182 | 74～121(196) | 3.20～4.80 | 0.25 | 0.25 | 10 | 35 | 19.6～31.4 | |
| S4 | 80～150 | 85～125(196) | 3.50～5.00 | 0.2 | 0.15 | 8 | 35 | 19.6～31.4 | Especially suitable for slip rings of large turbo-generators | |
| S31 | 770～1430 | 44～73(588) | 6.32～9.48 | 0.25 | 0.2 | 10 | 30 | 20～35 | Electric tools motors | |
| RO15 | 329～611 | 76～120(196) | 3.36～6.24 | 0.2 | 0.15 | 8 | 30 | 19.6～31.4 | ||
| R211 | 147～273 | 56～84(588) | 3.60～5.40 | 0.2 | 0.15 | 8 | 35 | 24.5～34.5 | Highspeed series motors | |
| R608 | 156～634 | 75～123(196) | 3.40～5.20 | 0.2 | 0.2 | 8 | 35 | 24.5～34.5 | Electric tools, household applicances | |
| Electric graphite | D104 | 6～14 | 71～110(196) | 1.92～2.88 | 0.2 | 0.25 | 12 | 40 | 14.7～19.6 | d.c. or a.c. commutator machines |
| D172 | 7.8～18.2 | 71～112(196) | 2.16～3.24 | 0.25 | 0.2 | 12 | 70 | 14.7～19.6 | Electric tools, electric motors, radio jamming resistance | |
| D172NM | 9～21 | 71～112(196) | 1.68～2.52 | 0.2 | 0.2 | 12 | 70 | 14.7～19.6 | d.c. welding dynamous and 80-120V d.c. machines | |
| D213 | 22～36 | 55～103(980) | 1.95～3.25 | 0.25 | 0.15 | 10 | 40 | 19.6～39.2 | Highspeed turbo-generators and d.c. machines of small /medium size | |
| D214 | 21～35 | 55～103(980) | 1.80～3.00 | 0.25 | 0.15 | 10 | 40 | 19.6～39.2 | Especially suitable for slip rings of large a.c. motors | |
| D252 | 10.5～19.5 | 50～98(588) | 1.88～3.13 | 0.25 | 0.15 | 12 | 45 | 19.6～24.5 | Automobile generators and traction motors with mechanical vibration | |
| D308L | 30～56 | 70～105(980) | 1.95～4.05 | 0.25 | 0.15 | 10 | 40 | 19.6～39.2 | Exciters of turbo-generators; d.c. machines with shock load | |
| D3O8 | 28～52 | 47～108(980) | 1.69～3.51 | 0.25 | 0.15 | 10 | 40 | 19.6～39.2 | 120-140V d.c. machines, automobile generators and traction motors | |
| D312 | 25～46 | 61～101(980) | 1.62～3.38 | 0.25 | 0.1 | 12 | 50 | 19.6～39.2 | d.c. motors with difficulties of commutation, highspeed d.c. motors, micro d.c. motors and motors for electric toods. | |
| D374L | 35～65 | 62～102(980) | 1.89～3.92 | 0.2 | 0.12 | 12 | 50 | 19.6～39.2 | Amplidynes and small d.c. machines with high angular velocity | |
| D374F | 40～74 | 58～108(980) | 1.75～3.65 | 0.2 | 0.2 | 12 | 50 | 19.6～39.2 | ||
| D374B | 40～74 | 54～100(980) | 1.82～3.78 | 0.25 | 0.25 | 12 | 50 | 19.6～39.2 | Small high speed series motors | |
| D374N | 41～75 | 54～100(980) | 1.82～3.78 | 0.2 | 0.2 | 12 | 60 | 19.6～39.2 | Traction motors and d.c. machines for difficulty in commutation | |
| D374S | 40～74 | 54～100(980) | 1.82～3.78 | 0.2 | 0.2 | 12 | 50 | 19.6～39.2 | Traction motors and main generators for locomotives high speed excites for turbo-generators, rolling mill motors, and main generators, e.c. commutator motors and other d.c. motors with some difficulties of communtation | |
| D376 | 42～78 | 82～116(588) | 1.89～3.92 | 0.25 | 0.25 | 12 | 50 | 19.6～39.2 | ||
| D376N | 43～81 | 82～116(588) | 1.89～3.92 | 0.2 | 0.2 | 12 | 60 | 19.6～39.2 | ||
| D376Y | 43～81 | 82～116(588) | 1.89～3.92 | 0.2 | 0.2 | 12 | 50 | 19.6～39.2 | ||
| Note：“（ ）”:Load，Unit：newton (N) | ||||||||||
| Standard sizes for raw material: Metal+graphite：(21-41)*108*126mm; (21-41)*120*138mm; (21-41)*68*148mm Silver+graphite: (20-40)*32*60mm ; (20-40)*65*82mm; (20-40)* 68*148mm Electric graphite：(21-41)*108*126mm Resin+graphite：(21-36)*67*135mm———————————— | ||||||||||
Applications of carbon brush/electric brush: Our carbon brushes are used in wind power generators, big ship engines and other big machines; Our carbon brushes are used in steel processing, mining, wind power generators, traction and a wide range of general industrial applications all over the world. We hope to establish a good business relationship with you; we will serve you with the best quality, best delivery time and best solutions. see bellow special grades for special applications: wind power/energy generators and traction motors:

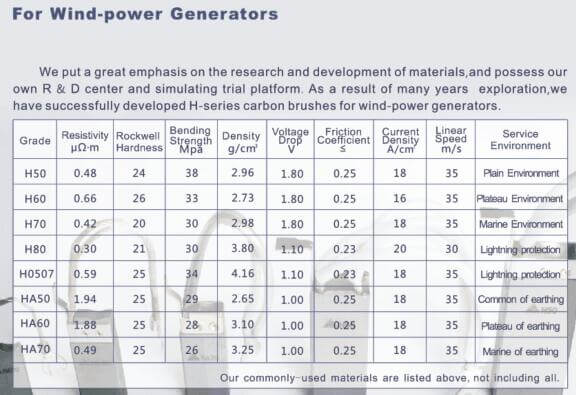

carbon brush material data sheet-grades for wind power generators

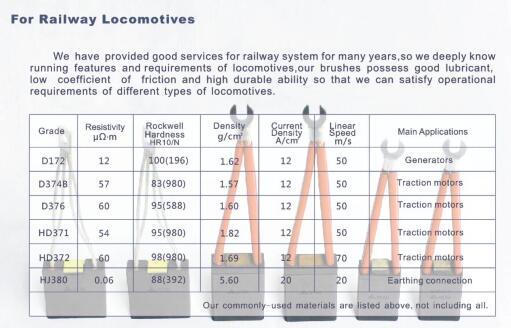

data sheet of carbon brush materials for railway locomotives-traction motors
