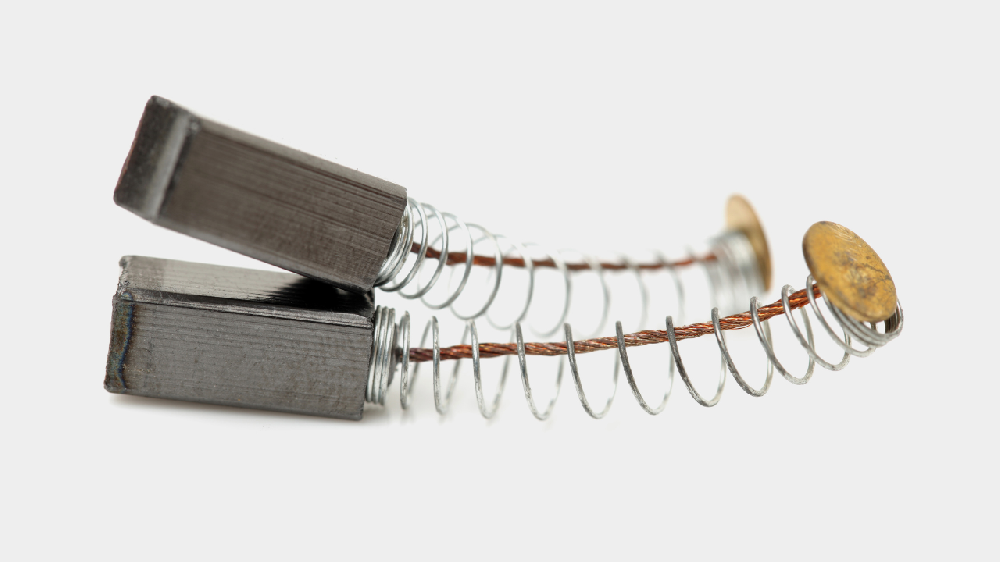

Common types of carbon brushes for electrical applications

When it comes to the different types of carbon brushes in the market, there are many options you can choose from.

For the scope of this guide, we will classify these carbon brushed base son design, manufacturing process, types of carbon and applications.

With this criteria, it will be easier to choose specific carbon brush types for your unique project. Let’s look at some common options:

What is Carbon Brush?

A carbon brush conducts electrical current between a generator and motor’s stationary and rotating part. It is essentially a small, rectangular sliding block commonly found in DC motors, where it ensures commutation is spark-free.

Types of Carbon Brushes

A. Depending on Type of Carbon

1. Carbon Graphite Brushes

Carbon graphite brushes are derived from combining carbon and graphite. This offers a unique balance of properties including self-lubrication, electrical conductivity and durability. You can find carbon graphite brushes in industrial motors, power tools and electrical vehicles.

Key Features

• Offer high conductivity.

• Are self-lubricating thanks to use of graphite reducing friction between parts.

• Provide long-term performance due to heightened wear resistance.

• Low friction coefficient reduces heat generation ensuring smooth operation at high speeds.

• Effective heat dissipation preventing overheating in high-power applications.

• Offer stable, smooth and reliable operation.

2. Electrographitic Carbon Brushes

This type of brush is made from electrographite which is synthesized by heating carbon at over 2,500°C in a controlled environment. Under these conditions, the carbon is converted to a crystalline structure synonymous with graphite enhancing its properties.

Key Features

• Electrographite is a highly pure material that is more robust than carbon ideal for heavy-duty applications.

• Provides superior electrical performance.

• Displays high resistance to wear especially owing to their low coefficient of friction allowing use in high-speed or high-load environments.

• Electrographitic carbon brushes can withstand high-temperature operating environments without degrading.

• Have low electrical losses allowing highly efficient operations with low power consumption and heat generation.

3. Graphite Carbon Brushes

Graphite carbon brushes primarily utilize naturally occurring graphite not taken through structure altering refining processes. These brushes are suited for moderate applications where conditions are optimal and operational demands are not intensive.

Key Features

• Use of natural graphite ensures it is self-lubricating.

• Offers decent electrical conductivity.

• Since it is self-lubricating, friction coefficient is low and thus experiences minimal wear.

• Graphite’s low reactivity means it is resistant to chemical induced degradation.

• Operate quietly owing to graphite’s natural lubricating property.

4. Metal Graphite Carbon Brushes

Metal graphite carbon brushes utilize graphite alongside select types of metals as the primary construction material. Powders of metals like copper and silver find common use.

Using metal graphite creates a high-performance solution, balancing between excellent electrical conductivity and graphite’s self-lubricating property. They are thus ideal in high-current and low voltage operations where they transmit power efficiently.

Key Features

• Including metal in its material make up significantly increases electrical conductivity to support high currents.

• Presence of graphite provides natural self-lubrication preventing excessive wear.

• Metal additives augment the brush’s mechanical strength and thus durability in high load cycles.

• Offer better wear resistance compared to standard carbon brushes.

• Metal graphite carbon brushes have a low voltage drop at the contact points resulting in more efficient power transfer.

• The excellent high-current performance prevents excessive heating that might be damaging.

5. Resin Bonded Carbon Graphite Brushes

This type of carbon brush is developed by using resin binder to bond carbon and graphite particles together. Using a resin binder offers manufacturing flexibility, influencing brush shape and mechanical strength, while also controlling wear rate.

Key Features

• Offer moderate but sufficient electrical conductivity owing to resin composition ideal for low-to-moderate current applications.

• Using resin binder increases mechanical strength offering the brush better resistance to physical wear.

• Having graphite in its structure provides for smooth operation with minimal friction between components.

• Resin bonded brushes wear down gradually over time without causing significant damage.

• Can handle moderate temperatures, owing to low tolerance of high heat by the resin binder.

• Economical, owing to the lower manufacturing costs compared to electrographitic or metal-graphite brushes.

B. Based on the Design

6. Solid, One-piece Carbon Brushes

Solid, one-piece carbon brush design is a carbon brush that is constructed from a single carbon piece or carbon-graphite material. It typically features no additional inserts and laminated layers making it simple and easy to manufacture.

Key Features

• Utilizing a single carbon piece gives it a simple construction build with fewer points of failure.

• Using carbon or graphite or a blend of both provides solid electrical conductivity.

• The single-piece construction offer good mechanical integrity.

• Have a low wear rate allowing brush longevity and reduced maintenance needs.

• Self-lubrication capacity reduces friction between parts in contact minimizing wear and preventing excessive heat build-up.

• Offer decent tolerance to moderate temperatures.

• The simple design ensures consistent electrical and mechanical performance.

7. Fractional HP Brushes

Fractional HP (Horsepower) brushes are designed for small electric motors with power ratings usually below one horsepower (HP). They find use in fractional horsepower motors, typically found in automotive accessories, household appliances, power tools and small-scale machinery.

These brushes are small in size and optimized for low-power motors requiring low current, moderate speed, and minimal heat generation. You find fractional HP brushes typically made from carbon or carbon-graphite materials.

Key Features

• These brushes are physically smaller compared to those used in larger industrial motors.

• Provide moderate electrical conductivity sufficient for low-current applications.

• Graphite in these brushes is adequate to offer natural lubrication, reducing friction which is crucial for smooth operation.

• Their design allows gradual wearing ensuring a decent service life without significant damage.

• Operating at lower currents and speeds results in less heat generation.

• Their low material requirements and simple construction makes them affordable.

• Ideal for compact motors with limited space and high efficiency demands.

8. Split Carbon Brushes

Split carbon brushes encompass a brush design in which the brush is divided in two or more sections with a slight gap. This design is common in large or high-speed motors and generators. It optimizes electrical contact, reduces wear, and improves overall performance.

Splitting the brush allows more even distribution of the electrical load across the commutator. This helps minimize sparking and localized heating, resulting in an extended lifespan. Split carbon brushes can be made from carbon-graphite, electrographitic carbon and even metal-graphite.

Key Features

• Can use a variety of materials depending on specific application requirements like operating speed, current load and environmental conditions.

• Splitting the brushes creates multiple contact points between the brush and the commutator distributing wear more evenly.

• This design helps minimize sparking by reducing electrical load on individual contact points allowing smoother transitions of the brush.

• Reduced stress on commutators by spreading out the electrical contact over a wider area hence less wear.

• Improved cooling owing to gap between the split sections reducing heat buildup.

• Vibration dampening allowing slight movement of independent sections and absorption of the mechanical vibrations.

• Can implement varied split counts to suit desired performance.

• Multiple contact points ensures more consistent electrical contact and thus improved electrical performance.

C. Based on Carbon Graphite Manufacturing Process

9. Impregnated Carbon Brushes

Impregnated carbon brushes infuse the carbon or graphite material with other substances to improve performance characteristics like lubrication and conductivity. During impregnation, carbon brush material is soaked in solution of metals or resins filling up pores in the carbon structure.

Carbon brushes can be metal-impregnated with copper, silver, or lead increasing electrical conductivity and ability to carry higher currents. They could also be resin-impregnated with phenolic or epoxy enhancing mechanical strength and durability.

Key Features

• Oil or graphite-impregnated brushes offer better lubrication properties reducing friction between contacts.

• Impregnating carbon brushes with resin increases mechanical strength and resistance to wear.

• Enhanced lubrication reduces friction and thus lower operating temperatures.

• Metal-impregnated carbon brushes exhibit higher electrical conductivity than standard brushes ideal for high-current applications.

• Impregnating carbon brushes reduces sparking and arcing providing more stable and uniform contact.

10. Extruded Carbon Brushes

These carbon brushes are produced through an extrusion process. Here, the carbon or graphite material is forced through a die to shape it ensuring consistency. Extrusion begins with mixing the raw carbon, graphite, and other additives creating a homogeneous mixture.

A custom die is used to create specific cross-sectional shapes, before a baking process that hardens and strengthens the structure. Here, the carbon or graphite particles are bound together, giving the brush its final mechanical properties. Additional machining or finishing may follow for precise dimensions.

Key Features

• Each brush is produced with high precision and consistency ideal for applications requiring tight tolerances.

• Increased grain structure uniformity of extruded brushes provides enhanced mechanical strength.

• Extrusion of carbon brushes allows creation of complex brush shapes required in certain specialized motors or generators.

• Since it utilizes graphite, these brushes offer lubricating properties.

• Use of graphite and carbon enhances electrical conductivity.

• Extruding carbon brushes can enable tolerance of harsh operating conditions by tailoring material choice.

11. Pressed or Molded Carbon Brushes

Pressed or molded carbon brushes are created via molding or pressing. A mold is used to shape, via compaction, a mixture of carbon, graphite, and other additives. It is then heat-treated to harden the material and enhance its mechanical and electrical properties.

Key Features

• Allows precise control over brush size, shape, and composition, making it highly versatile.

• Can alter material composition to suit application needs.

• Exhibit high mechanical strength due to pressing and sintering ensuring a dense and durable structure.

• Graphite and carbon offer excellent electrical conductivity, essential for efficient current transmission.

• Are durable and resistant to wear, even in demanding environments helping extend brush lifespan.

• The natural lubricating properties of graphite reduces friction between contacting parts.

12. Sintered Carbon Brushes

When making sintered carbon brushes, the material blend is placed in a die or mold and subjected to compression.  The resulting compacted shape is then heated in a furnace, fusing the particles together without liquefying. While high, temperatures are kept below the material’s melting point.

Key Features

• Display excellent electrical conductivity when metal powders are added ideal for high-current applications.

• Sintering produces a durable brush capable of withstanding significant mechanical wear and tear.

• The porosity maintained with sintering enhances lubrication reducing friction and wear.

• The brush displays superior mechanical strength more resistant to stress cracking or breaking when subjected to high vibration or shock loads.

• Sintered carbon brushes are resistant to environmental factors like chemical exposure, temperature extremes and humidity.

• The composition of these brushes can be tailored to specific applications.

D. Based on Type of Applications

13. High Current Carbon Brushes

High-current carbon brushes are designed to handle large amounts of electrical current. These brushes provide efficient electrical conductivity, low friction, and high durability under extreme conditions. They find use in high-power motors and generators across industries like power generation and mining.

Carbon and graphite find use in these brushes owing to their natural lubricating quality and electrical conductivity. Metals such as copper or silver can be added to improve conductivity. Depending on the application, resins or binders may be used to enhance mechanical strength and wear resistance.

Key Features

• Inclusion of metal powders in high current carbon brushes enhances electrical conductivity, allowing handling of large current amounts.

• These brushes are optimized to ensure low contact resistance, reducing energy loss and heat generation.

• High current carbon brushes are designed to last longer in demanding environments tolerating significant wear.

• Can operate under high temperatures, resulting from carrying large currents.

• Their high density increases their mechanical strength and durability to withstand the physical stresses of heavy loads and high-speed operation.

• Presence of graphite ensures self-lubrication.

14. High Power Carbon Brushes

Electric motors and generators that handle substantial electrical loads implement high-power carbon brushes. These brushes are made suitable offering efficient current transfer with minimal wear and durability under extreme operational conditions.

Key Features

• Demonstrate high electrical conductivity, enabling efficient current transfer in high-power applications.

• Their low electrical resistance, ensures minimal voltage drop across the brush-commutator interface maintaining power efficiency.

• High-power carbon brushes are highly durable and resistant to wear.

• These brushes can operate in high-temperature environments without degrading.

• Graphite content provides natural lubrication, ensuring smooth operation.

• Can withstand the mechanical forces generated in high-power applications.

15. Low Voltage Carbon Brushes

Electrical systems operating at low voltage levels (under 100 volts) implement low voltage carbon brushes. Such use is evident in portable tools, household appliances and some automotive systems with moderate power demands.

Key Features

• Optimized for operation at low voltages ensuring stable electrical contact and minimal voltage drop.

• Experience reduced sparking which can be damaging ensuring smooth operation.

• Implementation of carbon and graphite provides self-lubrication reducing friction and wear.

• Offer decent wear resistance and thus a long operational life.

• Handle less current means reduced heating during operation.

FAQs

What do numbers mean on Carbon Brushes?

Numbering carbon brushes is essential when seeking an ideal replacement brush for a specific motor, generator, or equipment. The numbers on carbon brushes can be used to indicate various attributes as follows:

• Application Code: Special indicator defining environment of use.

• Current Rating: Indicates the brush’s current-carrying capacity usually in amperes.

• Dimensions: Usually three numbers to represent brush length, width, and height.

• Manufacturer Code: Varies form one manufacturer to another.

• Material: Designates composition, such as graphite, carbon, or metal.

What is the difference between AC and DC Carbon Brush?

AC and DC carbon brushes differ in design, material composition, and electrical conditions they are best suited for. A summary of the differences is as follows:

• DC carbon brushes utilize direct current whereas AC carbon brushes utilize alternating current.

• You observe more arcing and sparking due to commutation with DC carbon brushes. AC carbon brushes have less arcing and smoother current flow.

• With DC carbon brushes, arcing resistance is prioritized at peak currents. AC brushes exhibit higher conductivity in such instance.

What is the difference between Carbon and Graphite Brushes?

You can summarize primary difference between carbon and graphite brushes in their properties, material composition and specific applications.

• Carbon brushes primarily implement carbon as the main material while graphite brushes utilize pure graphite or graphitized carbon.

• Electrical conductivity of carbon brushes is lower compared to graphite brushes making the latter more efficient in current transfer.

• Carbon brushes offer more wear resistance ideal for high-friction applications compared to graphite brushes.

• Graphite brushes spark less and ideal for smooth AC applications as opposed to carbon brushes’ sparking and arcing control.

Why use Carbon Brushes in AC Generators?

Here are some reasons why carbon brushes are used in AC generators:

• Carbon brushes offer efficient current transfer.

• These brushes can withstand mechanical wear while maintaining long-term performance.

• Carbon brushes display arc resistance during operation.

• Can handle high temperatures without rapid deterioration.

• Provide smooth, low-friction operation, reducing wear on components.

• Offer stable performance in different environments.

• Are capable of handling high current loads.

How long do Carbon Brushes Last?

Many factors will influence the lifespan of carbon brushes including application, operating conditions, material composition, and maintenance practices. While designed to wear down over time, carbon brushes can typically make from 500 up to 5,000 hours of operation.

Despite being variable, lifespan can be extended through close monitoring, regular maintenance an appropriate brush selection.

Conclusion

Carbon brush types are a versatile and durable choice when it comes to motor and generator applications. You find these brush type particularly useful where good conductivity, low friction and heat resistance are desired.
