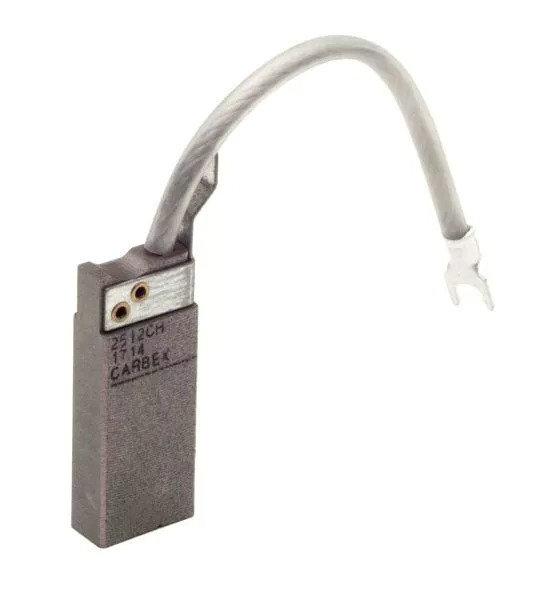

Carbex 2512-40-SW-KIT Carbon Sandwich Grounding Brush

Part No. 2512-40-SW-KIT

Carbex 2512-40-SW-KIT sandwich carbon grounding brush kit for wind turbine generator shaft grounding. Unique sandwich structure combines silver graphite for low contact resistance and electrographite for self-lubrication. Safely bleed stray shaft currents to ground, prevent bearing electrical erosion, stable performance in harsh offshore environments. Direct replacement equivalent to Schunk 10697850, full assembly kit ready for installation.

Material	Sandwich composite: Silver Graphite + Electrographite
Dimensions	25mm × 12.5mm × 64mm, Shaft Radius R140mm, insulated copper lead length:150mm
Application	Wind turbine generator shaft grounding, compatible with GE, Siemens, Loher, Winergy, Senvion wind turbines. Divert stray shaft currents, eliminate electrical pitting & bearing damage, protect rotating generator bearings for onshore and offshore wind farms
Voltage	AC / DC up to 1000V
Current Density	2 – 6 A/cm²
Speed	Max peripheral speed up to 32 m/s
Hardness	Shore 36 – 46
Grade	Sandwich Silver Graphite Composite Grade
Connection	Cable bonded assembly connection
Lead Type	Flexible insulated copper lead, pre-assembled within full kit
Spring	Pre-installed constant force spring, complete ready-to-fit kit

Request a Quote Related Products

48h Sample Dispatch 60+ Countries Served Datasheet Included

Technical Specifications

Product Model	Carbex 2512-40-SW-KIT
Material	Sandwich composite: Silver Graphite + Electrographite
Dimensions	25mm × 12.5mm × 64mm, Shaft Radius R140mm
Copper Lead Length	150mm
Application	Wind turbine shaft grounding, GE, Siemens, Loher, Winergy, Senvion generators
Working Voltage	AC / DC up to 1000V
Current Density	2 – 6 A/cm²
Max Peripheral Speed	32 m/s
Hardness	Shore 36 – 46
Brush Grade	Sandwich Silver Graphite Composite Grade
Connection Type	Cable bonded assembly connection
Lead Type	Flexible insulated copper lead (pre-assembled kit)
Spring	Pre-installed constant force spring, full kit assembly
Equivalent OEM Part	Replaces Schunk 10697850
Key Features	Sandwich dual-layer design, low contact resistance, bearing stray current protection, offshore resistant, ready-to-install kit
Quality Standard	Matches Carbex OEM specification

Description

The Carbex 2512-40-SW-KIT Carbon Sandwich Grounding Brush is a complete pre-assembled shaft grounding brush kit specially engineered for wind turbine generators. Featuring advanced sandwich composite construction, the brush integrates silver graphite layer for ultra-low contact resistance and electrographite layer for excellent self-lubricating sliding performance. This grounding brush creates a reliable conductive path to divert harmful stray shaft currents away from generator rolling bearings to ground. It effectively avoids electrical pitting, grooves and premature bearing failure, reducing turbine downtime and expensive wind farm maintenance costs. The brush block is pre-machined with R140mm radius profile to perfectly match large generator shaft surface. The kit comes fully assembled with carbon sandwich brush block, constant force spring and insulated flexible copper lead. Widely deployed on GE, Siemens, Loher, Winergy and Senvion onshore & offshore wind turbines. It serves as drop-in replacement for Schunk 10697850. It maintains consistent low wear rate and stable grounding performance under high humidity, temperature fluctuation and dusty wind field conditions. Strict quality inspection, bulk stock and worldwide shipping available for wind farm maintenance and OEM service customers.
