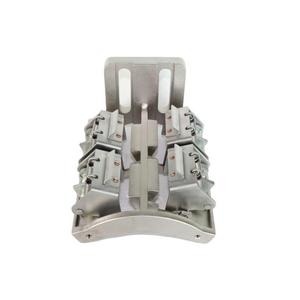

Carbon Brush Holders

Electroplating Equipment Brush Holders

Electroplating equipment brush holders — bronze/stainless high-current holders (500 A/1000 A class, 25 mm travel, M6 screws) carrying M195-class brushes with R60 pre-ground contact. For rectifier output, bus bars and VCP/PCB plating lines; verify current rating & mounting.

Material	Bronze and stainless steel construction
Dimensions	high-current class refs: travel 25 mm; holder-with-brush 118 × 40 × 70 mm (500 A, M195 brush
Application	Brush holders for electroplating equipment — transfer high DC current from rectifier/line to moving contact surfaces (tank bus bars, VCP/PCB plating-line conductive blocks, anode rails); copper-graphite/M195-class brushes carry plating current; spring
Current Density	High-current class — up to 500 A / 1000 A per holder
Grade	M195 (Mersen/electrographite-copper class) with R=60 mm pre-ground conta
Connection	Holder fixed with 2 pcs M6 × 10 mm stainless-steel hex screws; brush shunt to line circuit.

Compatible Models

**VCP / PCB plating lines** (conductive brush & block class) — verify Electroplating rectifier output / bus-bar transfer points — verify Tank & brush (tampon) plating equipment — verify High-current plating racks / anode rail contact — verify **Always verify**: brush size current rating and mounting阿里巴巴

Request a Quote Related Products

48h Sample Dispatch 60+ Countries Served Datasheet Included

Technical Specifications

Electroplating Equipment Brush Holders (High Current)
Specification	Value
Product Type	Carbon brush holder (electroplating, high current)
Material	Bronze & stainless steel
Current Class	500 A / 1000 A (supplier spec)
Travel	25 mm
Fixing	2 × M6 × 10 mm stainless hex screws
Brush	M195 grade, R=60 mm pre-ground
Holder w/ Brush	118 × 40 × 70 mm (500 A class)
Applications	Rectifier transfer; VCP/PCB lines; tank & brush plating
Voltage	Per line (0–24 V typical) — pending

* Listing based on session supplier spec and channel data. Fitment to be confirmed per machine; compatibility claims to be verified per machine brand/model.

Compatible Models

This Electroplating Equipment Brush Holders is designed as a direct replacement for the following machine models and series:

Not sure if it fits your machine? Send us your equipment model, motor type or original part number — our engineers will confirm compatibility and advise the correct grade. Ask an engineer →

Description

Overview

Electroplating equipment brush holders — bronze & stainless-steel holders engineered for high-current DC transfer in electroplating lines: rectifier output, tank bus bars, VCP/PCB conductive blocks and anode-rail contact. Chemical-resistant construction with spring-loaded, 25 mm-travel contact.阿里巴巴
