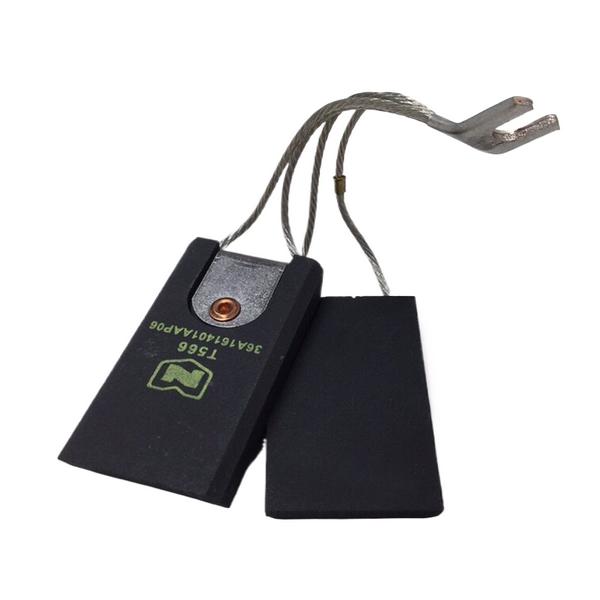

National Carbon 36A161401AAP06 Carbon Brush T566

Part No. 36A161401AAP06

National Carbon 36A161401AAP06 Carbon Brush T566 is heavy-duty 2-wafer split electro-graphite carbon brush sized 0.75 × 1.5 × 2.75 inch. T566 grade carbon paired with twin wafer design suppresses cross-current, delivers superior commutation performance for GE large industrial DC motors and generators. Equipped with 4” tinned copper braided shunt and 9S hammer plate terminal. Ideal OEM replacement carbon brush for steel mill, mining and paper mill DC rotating equipment maintenance.

Material	Grade T566 electro-graphite carbon, resin impregnated, excellent film-forming and low friction prope
Dimensions	- Brush size: 0.75” × 1.50” × 2.75” - Construction: 2 Wafer (split twin block design) - Shunt length
Application	National Carbon / Morgan AM&T 36A161401AAP06 T566 two-wafer carbon brush for heavy-duty GE industrial DC motors and generators. Widely deployed in steel rolling mills, mining shovels, draglines, paper mill drives and large rotating industrial machinery. 2
Voltage	Medium voltage DC industrial motor & generator systems
Current Density	Engineered for high continuous current density for heavy variable-load DC duty c
Grade	T566 National Carbon / Morgan AM&T electro-graphite grade, 2 wafer construction
Connection	9S hammer plate metal terminal connection
Lead Type	4-inch multi-strand tinned copper braided shunt lead

Request a Quote Related Products

48h Sample Dispatch 60+ Countries Served Datasheet Included

Technical Specifications

Part Number	36A161401AAP06
Product Type	2-Wafer Industrial DC Motor Carbon Brush
Brand	National Carbon, Morgan AM&T, GE Compatible
Carbon Grade	T566 Electro-graphite
Brush Construction	2 Wafer / Split Twin Block
Brush Dimensions	0.75” × 1.50” × 2.75”
Shunt Lead	4" Multi-strand Tinned Copper Braided Shunt
Terminal Style	9S Hammer Plate Metal Terminal
Working System	Medium Voltage DC Motors & Generators
Main Application	Steel rolling mill, mining shovel, dragline, paper mill, heavy industrial rotating equipment
Key Features	2-wafer cross-current suppression, low sparking, stable commutator film, long wear life
Included Items	Carbon brush with copper shunt & hammer plate terminal (spring not included)
Usage	Heavy-duty industrial DC motor & generator maintenance spare part

Description

National Carbon 36A161401AAP06 Carbon Brush T566 is a premium two-wafer split electro-graphite carbon brush manufactured as direct OEM replacement for General Electric heavy-duty DC motors and generators. This carbon brush features T566 electro-graphite material with 0.75” × 1.50” × 2.75” dimension and twin wafer split construction. The dual wafer design effectively suppresses cross-currents, reduces electrical sparking and maintains a stable protective film on the commutator surface under heavy and fluctuating industrial loads. The resin-impregnated carbon block delivers consistent conductivity, low friction and extended service life in harsh factory environments. It comes fitted with a 4-inch multi-strand tinned copper braided shunt firmly crimped to the carbon assembly, resisting vibration fatigue. The 9S hammer plate terminal ensures secure installation inside matching GE brush holders. Commonly used in steel rolling mills, mining draglines, power generators and paper processing machinery. Precision machined dimensions guarantee perfect fit for scheduled overhaul and maintenance of large GE DC rotating equipment.
