Carbon Brush Holders

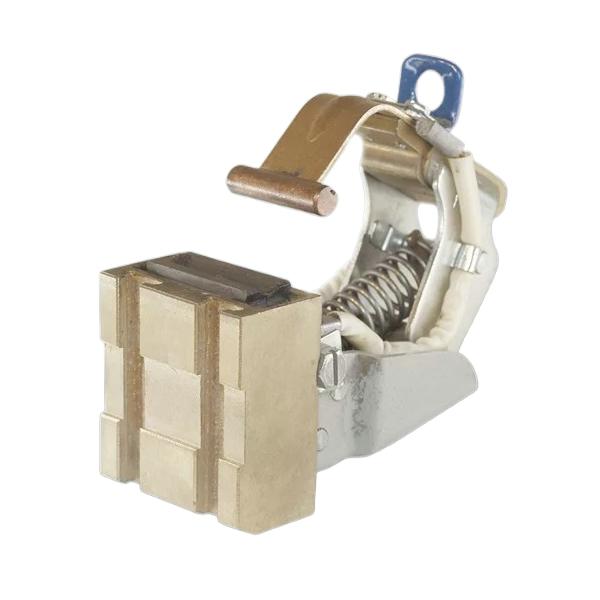

Pocket Carbon Brush Holder

Part No. Pocket Carbon Brush Holder

Pocket carbon brush holder is heavy-duty brass brush pot assembly, available in multiple standard pocket sizes. Equipped with stainless steel compression spring, it holds carbon brushes firmly and delivers consistent contact pressure for DC motors and slip ring generators. Anti-corrosion, high-temperature resistant, easy brush replacement. Ideal OEM replacement component for power, mining and steel mill rotating electrical equipment maintenance.

Dimensions	Custom pocket sizes available: 5×10, 8×20, 10×25, 12.5×25 mm
Application	Pocket carbon brush holder (brush pot) designed to securely retain carbon brushes inside DC motors, slip ring generators, traction motors and industrial rotating machinery. Widely used in power generation plants, steel mills, mining equipment, paper mills
Grade	Cast silicon brass ZCuZn16Si4

Request a Quote Related Products

48h Sample Dispatch 60+ Countries Served Datasheet Included

Technical Specifications

Product Name	Pocket Carbon Brush Holder
Type	Single Pocket Brush Pot
Body Material	Cast Silicon Brass ZCuZn16Si4
Insulation Liner	High-temperature phenolic resin
Spring Material	Stainless steel compression spring
Standard Pocket Sizes	5×10, 8×20, 10×25, 12.5×25 mm
Custom Size	Available per drawing or sample
Connection Type	Screw terminal / copper shunt optional
Working System	Low & Medium voltage DC motors, slip ring generators
Main Application	Power generation, steel mill, mining, paper mill, heavy industrial rotating machinery
Key Features	High conductivity, anti-corrosion, stable spring pressure, easy brush maintenance, OEM replacement
Condition	New
Note	Carbon brush sold separately

Description

Pocket Carbon Brush Holder, also known as brush pot, is a precision machined brass housing designed to house carbon brushes for industrial motors and generators. Made of cast silicon brass alloy, it features excellent electrical conductivity, corrosion resistance and mechanical stability under continuous vibration and temperature fluctuations.

The pocket inner liner adopts high-temperature phenolic insulation material to prevent short circuit. The built-in stainless steel compression spring provides steady, consistent pressure on carbon brushes, maintaining reliable sliding contact between brush and commutator / slip ring. This reduces electrical sparking, minimizes wear of carbon brushes and rotating contact surfaces.

Multiple standard pocket sizes are in stock; custom dimensions can be produced according to customer drawings or samples. Simple mounting structure enables fast brush replacement and lowers equipment downtime. Commonly fitted on GE, Alstom, Baldor heavy-duty DC motors, power generators and mining rotating machinery. Strict quality inspection before shipment for industrial overhaul projects.
