Carbon Brush Holders

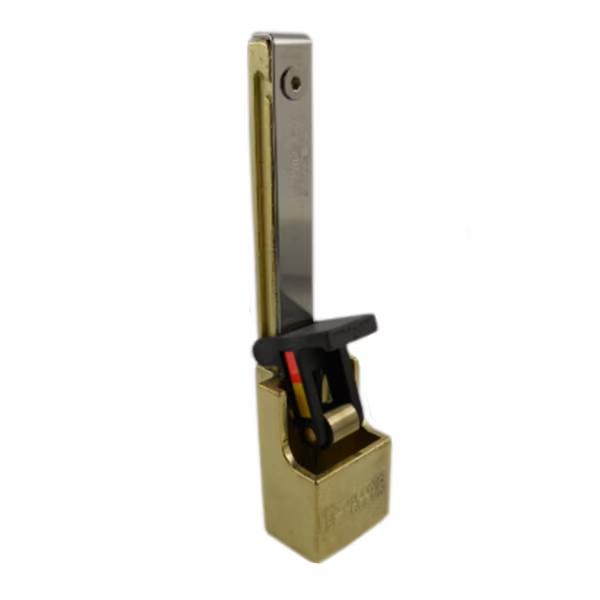

Brush Holder 1.25 X .75 X 2.25 , Single

Part No. 10.127522.1.131

Single brush holder sized for 1.25 X 0.75 X 2.25 inch carbon brush. Single leg mounting structure with phenolic insulated housing and stainless steel constant force spring. Delivers stable brush contact, reduces sparking and commutator wear. Perfect replacement assembly for heavy-duty DC industrial motors and traction motors requiring 1.25×0.75×2.25" carbon brushes.

Material	High strength phenolic resin, high dielectric, heat & vibration resistant
Dimensions	Thickness: 1.25" Width: .75" Length: 2.25"
Application	Industrial DC motors, traction motors, generator commutator systems, heavy-duty rotating machinery. Replacement brush holder for motors using 1.25 x 0.75 x 2.25 inch carbon brushes, widely used for factory motor overhaul and spare part replacement.
Speed	High Speed Steam Turbine > 8,000 ft/min Slow Speed Hydro Turbine < 4,000 ft/min

Request a Quote Related Products

48h Sample Dispatch 60+ Countries Served Datasheet Included

Technical Specifications

Product Name	Brush Holder 1.25 X .75 X 2.25 , Single
Product Type	Single Cavity Carbon Brush Holder
Housing Material	High Strength Phenolic Resin
Spring Type	Stainless Steel Constant Force Spring
Fitted Carbon Brush Size	1.25” × 0.75” × 2.25”
Brush Quantity	1 Carbon Brush
Mounting Structure	Single Leg Flange Mounting
Terminal Material	Copper Alloy / Silver Plated Copper Optional
Connection Method	Screw Terminal
Main Application	Heavy-duty DC motor, traction motor, industrial generator
Key Features	High insulation, anti-vibration, low sparking, direct OEM replacement
Usage	Industrial rotating machinery maintenance & replacement spare part

Description

Brush Holder 1.25 X .75 X 2.25, Single is a single cavity, single leg brush holder assembly made to accommodate carbon brush dimension 1.25 inch × 0.75 inch × 2.25 inch. The holder body is manufactured from high-performance phenolic resin, offering excellent insulation, heat resistance and mechanical strength to withstand continuous vibration and temperature fluctuations in heavy industrial environments. Equipped with stainless steel constant force spring, it applies steady pressure on the carbon brush, minimizing electrical sparking and slowing down commutator surface abrasion. Copper alloy terminals ensure reliable electrical conductivity and reduce heat build-up under continuous load. Single leg mounting design provides simple, space-saving installation for DC motors and traction equipment. It is a direct replacement spare part for maintenance projects where the original brush holder or carbon brush with 1.25 x 0.75 x 2.25 inch size needs replacement. Made to match OEM dimensional requirements for industrial rotating machinery repair.
