Carbon Brush Holders

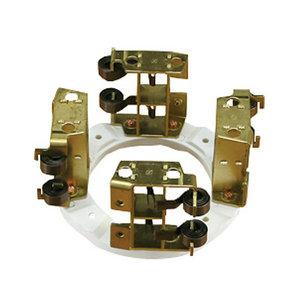

AMD Motor Brush Holder

Part No. AMD Motor Brush Holder

Carbon brush holder for AMD (Advanced Motor Drives) DC traction motors — 36/48 V golf cart and electric-vehicle duty on E-Z-GO, Yamaha and Club Car applications. AMD motors use double brush sets (8 brushes); brass holder typical. Verify motor model and brush box per part.

Voltage	motor-class 36 V / 48 V DC (AMD golf-cart duty); confirm against your motor.

Compatible Models

AMD EY7-4001 (E-Z-GO / Yamaha SepEx double brush set — 8 brushes) AMD EJ8-4001A / EJ4-4001 (Club Car IQ 48 V) ADC (AMD / KDS) 48 V 3.7–3.8 kW Club Car motors AMD series-wound golf cart motors (E-Z-GO / Yamaha class)

Request a Quote Related Products

48h Sample Dispatch 60+ Countries Served Datasheet Included

Technical Specifications

AMD Motor Brush Holder
Specification	Value
Product Type	Carbon brush holder for AMD DC traction motor
Brand	AMD (Advanced Motor Drives)
Applications	E-Z-GO, Yamaha, Club Car golf carts / electric vehicles
Motor Class	36 V / 48 V DC (series-wound & SepEx)
Brush Set	Double brush set (8 brushes total) on AMD motors — confirm per holder
Material	Not specified — confirm (brass typical in upgraded AMD motors)
Dimensions	Not specified — confirm brush box size / mounting
Spring	Not specified — confirm (spring-loaded typical)
Compatible Motors	AMD EY7-4001; EJ8-4001A / EJ4-4001; ADC (AMD/KDS) 48V 3.7–3.8kW

* AMD motor family and fitment from aftermarket retail data. Holder dimensions and material pending confirmation.

Compatible Models

This AMD Motor Brush Holder is designed as a direct replacement for the following machine models and series:

Not sure if it fits your machine? Send us your equipment model, motor type or original part number — our engineers will confirm compatibility and advise the correct grade. Ask an engineer →

Description

Overview

Carbon brush holder for AMD (Advanced Motor Drives) DC motors — the brush gear that keeps brushes on the commutator under spring pressure for high-torque traction duty on golf carts and electric vehicles. AMD motors are fitted on E-Z-GO, Yamaha and Club Car applications.EV Drives

Motor Compatibility

AMD EY7-4001 (E-Z-GO / Yamaha SepEx — double brush set, 8 brushes)
AMD EJ8-4001A / EJ4-4001 (Club Car IQ 48 V)
ADC (AMD / KDS) 48 V 3.7–3.8 kW Club Car motors
AMD series-wound golf cart motors

Notes

AMD motors use double brush sets for high current — confirm brush count per holder
Brass brush holder typical (used in upgraded/remanufactured AMD motors)
