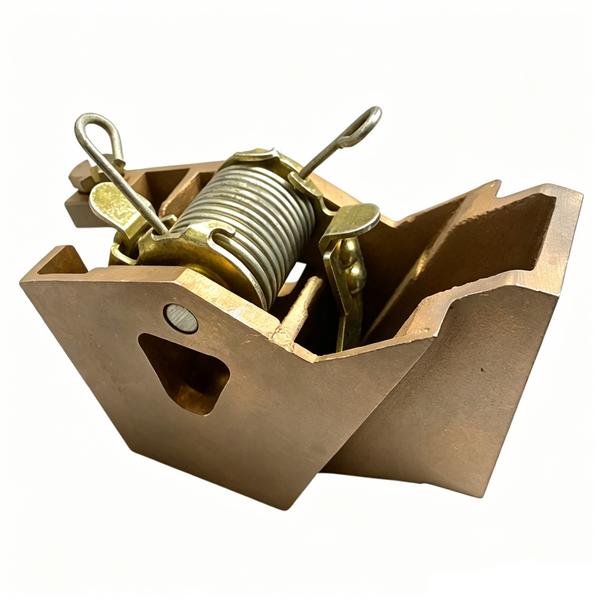

General Electric 5980822G02 Motor Carbon Brush Holder

Part No. 5980822G02

General Electric 5980822G02 carbon brush holder, OEM replacement brush holder assembly for GE heavy-duty DC motors. It is equipped with adjustable stainless steel springs, fits two carbon brushes with size 1.5 x 0.5 inch. Robust insulated phenolic housing, stable electrical contact, reliable for continuous heavy-duty operation. Widely used for locomotive and industrial mill DC motor overhaul, ideal spare part to replace worn original brush holders.

Material	- Housing: High strength insulated phenolic resin - Spring: Stainless steel adjustable constant forc
Dimensions	- Brush slot size: 1.5” x 0.5” - Capacity: Holds 2 carbon brushes - Mounting: Pre-drilled mounting h
Application	General Electric industrial DC traction motors, heavy-duty industrial motors, locomotive auxiliary motors, mill & steel plant drive motors, OEM replacement spare part for GE motor maintenance.
Voltage	Suitable for low / medium voltage DC industrial motors
Current Density	Matched for heavy-duty high current industrial motor operation
Speed	Designed for continuous high-speed heavy load motor service
Hardness	Insulator housing: Rigid phenolic composite, high impact & heat resistant
Grade	OEM Original GE replacement grade
Connection	Screw terminal connection
Lead Type	Terminal lug connection, no pre-attached leads
Spring	Adjustable stainless steel constant force spring, maintains consistent brush pressure

Request a Quote Related Products

48h Sample Dispatch 60+ Countries Served Datasheet Included

Technical Specifications

Model Number	5980822G02
Product Type	Carbon Brush Holder
Brand	General Electric (GE)
Brush Capacity	2 Carbon Brushes
Brush Slot Size	1.5" × 0.5"
Housing Material	Phenolic Resin Insulation
Spring Type	Adjustable Stainless Steel Constant Force Spring
Terminal Material	Copper Alloy
Connection	Screw Terminal
Mounting Method	Bolt-on Mounting
Main Application	GE Heavy-Duty DC Traction & Industrial Motors
Key Features	High temp resistant, stable brush pressure, low heat build-up
Product Use	Motor maintenance & OEM replacement spare part

Description

General Electric 5980822G02 carbon brush holder is a genuine-style replacement assembly for GE heavy duty DC traction and industrial motors. This brush holder assembly can accommodate 2 carbon brushes sized 1.5 x 0.5 inch. Built with high temperature phenolic insulated housing to prevent short circuit, paired with adjustable stainless steel constant force springs to deliver stable and consistent pressure on carbon brushes during motor running. The copper alloy contact terminals provide excellent electrical conductivity and reduce contact resistance and heat buildup under heavy load. It comes with pre-drilled mounting holes for simple field installation and maintenance. Perfect for locomotive auxiliary motors, steel rolling mill motors, mining and factory heavy-duty DC motor repair. It helps minimize sparking, extend carbon brush lifespan and keep motor running safely. Strictly manufactured to match OEM dimensions and performance standard for GE motor spare parts.
