Name: Electric Drive Brush Rockers
Brand: VOCarbon — Carbon Brushes, Brush Holders & Slip Rings
SKU: Electric Drive Brush Rockers
Availability: PreOrder

Technical Specifications

Electric Drive Brush Rockers — Family Specifications
Specification	Value
Product Type	Electric-drive brush rocker (brush rocker ring / brushgear yoke)
Function	Mounts & positions brush holders against the commutator; rotatable for neutral setting
Material	Metal alloy ring/arms + insulating components (per OEM design) — confirm per SKU
Mounting	End shield / bracket mounted, rotatable
Setting	Alignment line marks; stepless clearance adjustment (1.5–2 mm typical, SIMOTICS DC)
Holders	Multiple brush-holder stations per ring (count per SKU)
Options	Wear-switch provisions (traction/forklift designs)
Applications	Brushed DC motors, wound-rotor machines, generators — industrial, forklift/traction, machine drives
Compatibility	Siemens SIMOTICS DC · Baumüller DC · Linde traction motors (verify per SKU)

* Family-level listing. Each rocker SKU must be verified for motor frame, ring diameter, brush-holder station count and setting marks before listing.

Compatible Models

This Electric Drive Brush Rockers is designed as a direct replacement for the following machine models and series:

**Siemens SIMOTICS DC motors** (1HS6 / 1HS7 / 1HQ7 / 1GH5 series — brush-rocker setting per official manuals) **Baumüller DC motors** (internally ventilated GN..N series — brushgear twist-to-change design) **Linde forklift traction motors** (brush wear switches mounted on the brush rocker) Industrial brushed DC motors & generators (mill crane elevator machine-tool drives) Wound-rotor induction motors & synchronous machines (brush rigging) **Always verify**: motor frame size ring diameter brush-holder station count and setting marks against your machine

Not sure if it fits your machine? Send us your equipment model, motor type or original part number — our engineers will confirm compatibility and advise the correct grade. Ask an engineer →

Description

Overview

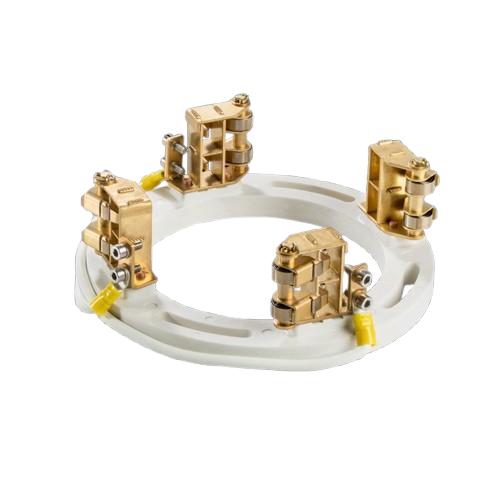

Brush rockers (also called brush rocker rings) are the brush-rigging yokes of brushed DC machines: the ring mounts the brush holders and can be rotated relative to the commutator to set the correct brush neutral position. They support and position the carbon brushes, compensating for brush wear and vibration to keep stable electrical contact.QY Research

Construction

Ring/arms in metal alloy, with insulating rings, bushings and connector rings per OEM design
Carries multiple brush-holder stations around the commutator
Rotatable mounting on the end shield/bracket with alignment marks for neutral setting
Provisions for wear switches on traction/forklift designs (e.g., Linde)

Setting & Maintenance

Align the rocker line mark with the end-shield mark after brush changes (Siemens SIMOTICS DC / Baumüller practice)
Setting clearance is steplessly adjustable (typically 1.5–2 mm on SIMOTICS DC)
Incorrect rocker position causes brush sparking and commutator damage — always reset to the line marks

[IMAGE 2 – Detail: alignment marks and brush-holder station]

Fitment

Siemens SIMOTICS DC (1HS6/1HS7/1HQ7/1GH5), Baumüller GN..N DC motors, Linde forklift traction motors
Industrial brushed DC motors/generators, wound-rotor machines
Fitment is per SKU — confirm motor frame, ring diameter, holder-station count and setting marks before ordering

Brush-rocker family listing. Siemens, Baumüller, Linde and other names are trademarks of their respective owners; compatibility references are informational.
