Carbon Brush Holders

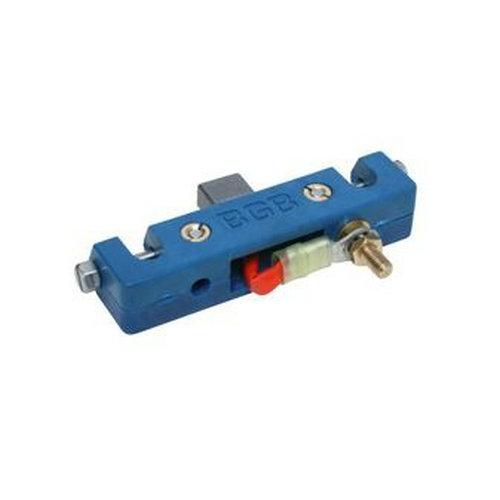

Vestas 60069225- 10207981 Brush Holder

Part No. 60069225- 10207981

Vestas 60069225 / 10207981 Paratec brush holder assembly, OEM replacement slip ring brush holder for Vestas 2MW wind turbines. Constructed with RYNITE reinforced PET housing, designed for 4mm silver Paratec carbon brush. Stainless steel constant spring ensures stable contact pressure, reduces slip ring wear and electrical sparking. Fits V80, V82, V105, V112, V117, V126 Vestas turbine platforms, widely used for wind turbine slip ring overhaul and spare part replacement.

Material	- Housing: RYNITE reinforced PET composite (high temperature, anti-vibration, high dielectric streng
Dimensions	- Brush slot width: 4mm - Overall assembly size: Custom compact Paratec holder footprint - Mounting:
Application	Vestas wind turbine slip ring system, OEM brush holder assembly for generator slip ring. Compatible with Vestas V80 Mk8/Mk10, V82, V105 Mk7+, V112, V117 Mk7, V126 (2MW series). Used for power & signal transmission on turbine generator slip ring, critical
Voltage	Low & medium voltage slip ring circuit for wind turbine generator
Current Density	Optimized for continuous low signal / power transfer under variable wind load
Speed	Suitable for continuous generator rotating speed of wind turbine
Hardness	RYNITE composite housing: High impact resistance, anti-fatigue under long-term v
Grade	Vestas OEM equivalent grade, Paratec SPGA4270-200 series assembly
Connection	Screw terminal connection
Lead Type	Terminal lug connection
Spring	Built-in stainless steel constant force spring, maintains uniform brush contact pressure

Request a Quote Related Products

48h Sample Dispatch 60+ Countries Served Datasheet Included

Technical Specifications

Part Number	60069225 / 10207981
Product Type	Paratec Slip Ring Brush Holder Assembly
Brand	Vestas
Housing Material	RYNITE Reinforced PET Composite
Spring Type	Stainless Steel Constant Force Spring
Brush Slot	4mm, for Paratec Silver Brush
Mounting Method	Bolt-on Mounting
Compatible Turbine Models	Vestas V80 Mk8/Mk10, V82, V105 Mk7+, V112, V117 Mk7, V126 (2MW)
Core Function	Generator slip ring power and signal transmission
Application Site	Onshore & Offshore Wind Farms
Product Use	Wind turbine slip ring maintenance OEM replacement spare part

Description

Vestas 60069225 / 10207981 brush holder assembly is the original Paratec slip ring brush holder designed for Vestas 2MW wind turbine generators. The housing is made of RYNITE reinforced PET composite material, delivering excellent heat resistance, insulation performance and vibration resistance for harsh onshore & offshore wind farm environments. This holder is built for 4mm silver contact Paratec brush. Integrated stainless steel constant force spring keeps consistent brush pressure against rotating slip ring surface, minimizing sparking, reducing slip ring abrasion and extending service life of both brush and slip ring. It adopts bolt-on installation design, simple for field replacement and cuts turbine downtime during maintenance. Compatible turbine models include Vestas V80 Mk8/Mk10, V82, V105 Mk7+, V112, V117 Mk7 and V126. Manufactured to match OEM dimensional and performance standards, it is a reliable spare part for wind farm slip ring maintenance, signal and power transmission of turbine generator system.
